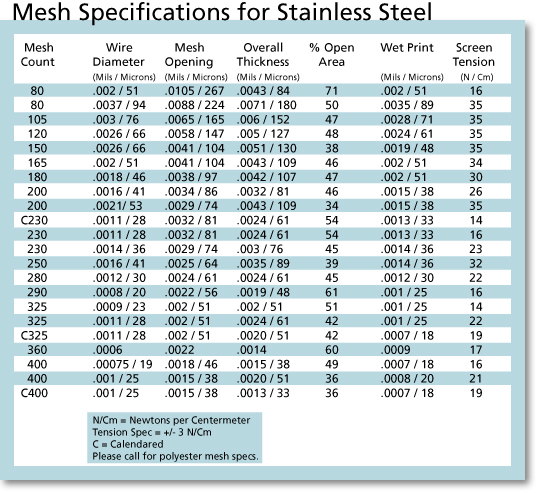

Steel Mesh Specification Chart Mesh Count wire Diameter Mesh Opening Overall Thickness % Open Area Wet Print screen tension (N/cm) 80 .002/51 .0105/267 .0043/84 71 .002/51 16 80 .0037/94 .0088/224 .0071/180 50 .0035/89 35 105 .003/76 .0065/165 .006/152 47 .0028/71 35 120 .0026/66 .0058/147 .005/127 48 .0024/61 35 150 .0026/66 .0041/104 .0051/130 38 .0019/48 35 165 .002/51 .0041/104 .0043/109 46 .002/51 34 180 .0018/46 .0038/97 .0042/107 47 .002/51 30 200 .0016/41 .0034/86 .0032/81 46 .0015/38 26 200 .0021/33 .0029/74 .0043/109 34 .0015/38 35 C230 .0011/28 .0032/81 .0024/61 54 .0013/33 14 230 .0011/28 .0032/81 .0024/61 54 .0013/33 16 230 .0014/36 .0029/74 .003/76 45 .0014/36 23 250 .0016/41 .0025/64 .0035/89 39 .0014/36 32 280 .0012/30 .0024/61 .0024/61 45 .0012/30 22 290 .0008/20 .0022/56 .0019/48 61 .001/25 16 325 .0009/23 .002/51 .002/51 51 .001/25 16 325 .0011/28 .002/51 .0024/61 42 .001/25 22 C325 .0011/28 .002/51 .0020/51 42 .0007/18 19 360 .0006/15 .0022/56 .0014/36 60 .0009/25 17 400 .00075/19 .0018/46 .0015/38 49 .0007/18 16 400 .001/25 .0015/38 .0020/51 36 .0008/20 21 C400 .001/25 .0015/38 .0013/33 36 .0007/18 19 C325 .0009/23 .0022 .0014/35 50 .0014/36 16 C400 .0007/18 .0018 .0010/25 51 .0010/25 16 n/cm = Newtons per Centimeter Tension Spec = +/- 3 N/cm C=Calendared Polyester Mesh Specification Chart Mesh Count Thread Diameter Mesh Opening Overall Thickness % Open Area 96 0.0035/90 0.0067/170 0.0063/161 42 110 0.0032/80 0.0059/150 0.0052/150 43 140 0.0025/64 0.0047/120 0.0041/120 41 156 0.0025/64 0.0035/90 0.0041/106 32 180 0.0022/55 0.0032/80 0.0036/80 33 196 0.0022/55 0.0028/70 0.0035/70 28 230 0.0019/48 0.0022/55 0.0032/81 27 255 0.0019/48 0.0016/40 0.0032/81 16 305 0.0015/34 0.0018/45 0.0021/54 29 330 0.0013/34 0.0015/39 0.0021/55 26 355 0.0013/34 0.0012/29 0.0022/56 28
